Model
|

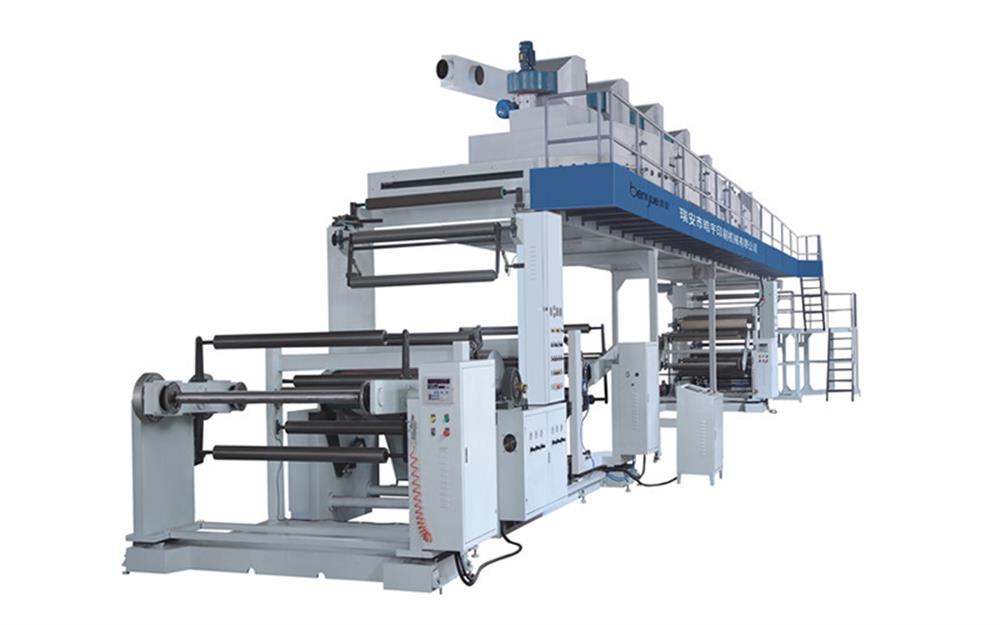

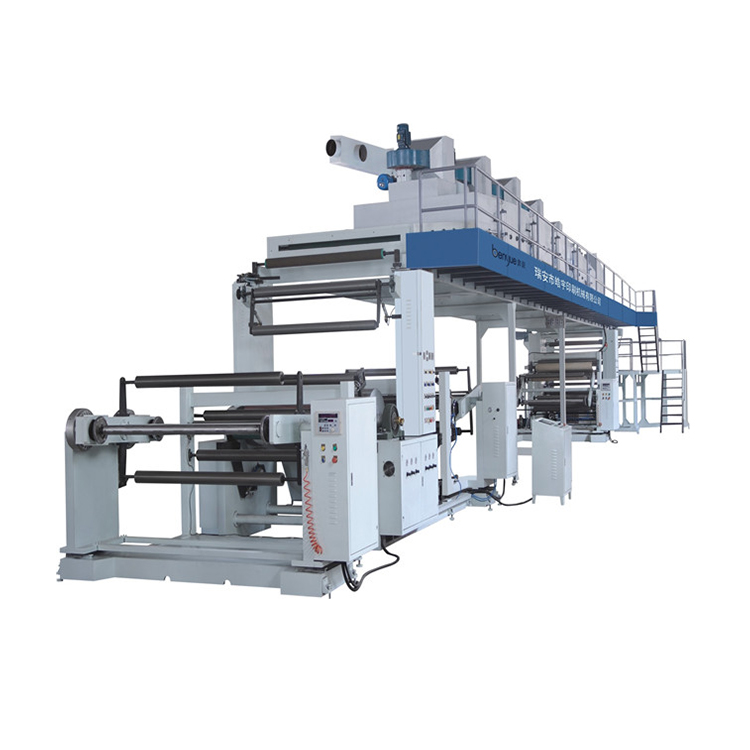

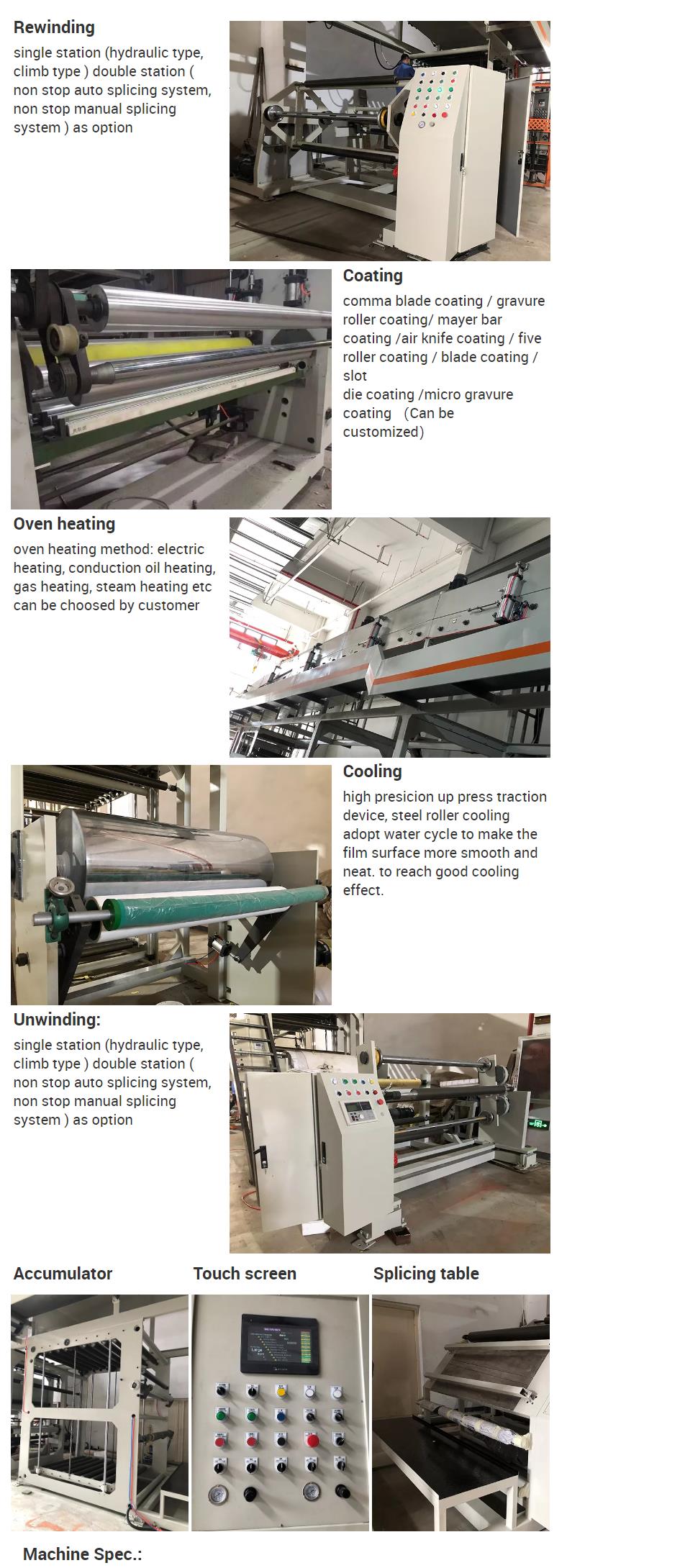

TB600~2500B window film coating machine
|
|
Coating method
|
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot die coating /micro gravure coating （Can be customized）
|
|
Coating width
|
600-2500MM （Can be customized）
|
|
Unwinding diameter
|
600-1500MM （Can be customized）
|
|
Winding diameter
|
600-1500MM （Can be customized）
|
|
Coating thickness
|
2-300g/square meter
|
|
Coating speed
|
10-300m / min (depending on material)
|
|
Heating method
|
Electric heating, oil heating and natural gas heating
|
According to the different requirements of the customers special the customized machine (limited width of 600-2500mm）
1. The whole machine is controlled by 4 frequency conversion motor, and the tension (unwinding, coating, traction and winding) of the whole machine is automatically controlled by Siemens PLC system. The reliability of the tension of the whole machine is improved through the touch screen control and display of human-machine interface.
2. The form of discharging rack is electric turnover double position, and magnetic powder automatic tension control is adopted.
3. Moire coating method: the coating scraper shaft adopts heavy-duty double shaft mechanical independent swimming, the scraper adjustment mode is manual and pneumatic, and the angle can be adjusted at will. The coating amount depends on the mesh line of the moire roller, and the moire roller with different mesh line can be changed for different coating amount.
4. The oven is 20 meters, the first 18 meters is divided into 6 sections, the temperature is controlled independently, the heating adopts the heat transfer oil circulation heating, the hot air entry drying system, the adjustable internal circulation suction and exhaust device, the air inlet and exhaust wind is strong, the drying is complete, and the UV drying system is reserved for the second 2 meters.
5. The guide wheel in the oven is synchronous with the main machine, and the synchronous belt wheel transmission is adopted to reduce the material stretching and deformation. The open top air cylinder oven and the film piercing operation platform make it easy for the operators to work.
6. The intermediate tension between coating roll and traction steel roll is synchronized by floating swing arm, which is automatically controlled by PLC
7. Automatic meter and speed control device
8. EPC alignment machine is used for deviation correction, so as to make the material winding neat.
9. Key type pneumatic expansion shaft is used for retracting and releasing shaft. For the convenience of loading and unloading operation, safety lock is used for taking and releasing pneumatic expansion shaft.
10. High precision up pressure traction device, water circulation type is adopted for steel roll cooling, through which the film is smoother, smoother and more effective.
11. The form of take-up rack is electric turnover double position, the take-up adopts frequency conversion motor, and the vector frequency converter is controlled by PLC computer system.
