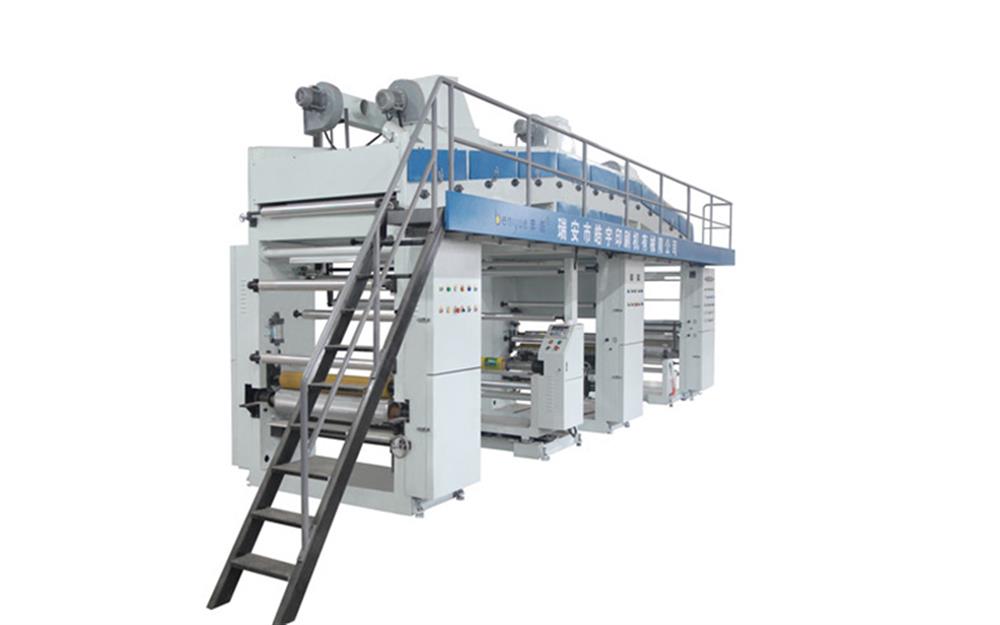

TB600~2500 coloring coating machine

According to the different requirements of the customers special the customized machine (limited width of 600-2500mm）

1. The whole machine is controlled by 6 variable frequency motor.

2. The feeding rack is in the form of single station and adopts magnetic powder automatic tension control.

3. Anilox coating mode: the coating scraper shaft adopts heavy-duty double shaft mechanical independent swimming. The scraper adjustment mode is manual with pneumatic, and the angle can be adjusted arbitrarily. The coating amount depends on the mesh line of the anilox roll. The anilox roll with different mesh line can be changed for different coating amount.

4. The oven is 9 meters, with independent temperature control in three sections. The heating adopts electric heating, hot air inlet drying system and adjustable internal circulation suction and exhaust device. The air inlet and exhaust force is strong and the drying is complete.

5. The guide wheel in the oven adopts active synchronization with the host, and the transmission adopts synchronous belt wheel transmission type to reduce material tension and deformation;

6. The intermediate tension between coating roller and traction steel roller is synchronously controlled by floating swing arm;

7. Automatic meter speed control device;

8. EPC edging machine is used for deviation correction to ensure the tidiness of material winding.

9. The retracting and releasing shaft adopts key type inflatable shaft, which is convenient for loading and unloading operation.

10. High precision up pressure traction device, water circulation type is adopted for steel roll cooling, and the film is smoother, more scraped and more cooling effect is achieved through the cooling roll.

11. The form of receiving rack is single station, and the winding is controlled by frequency conversion motor and vector frequency converter.
