Model
|

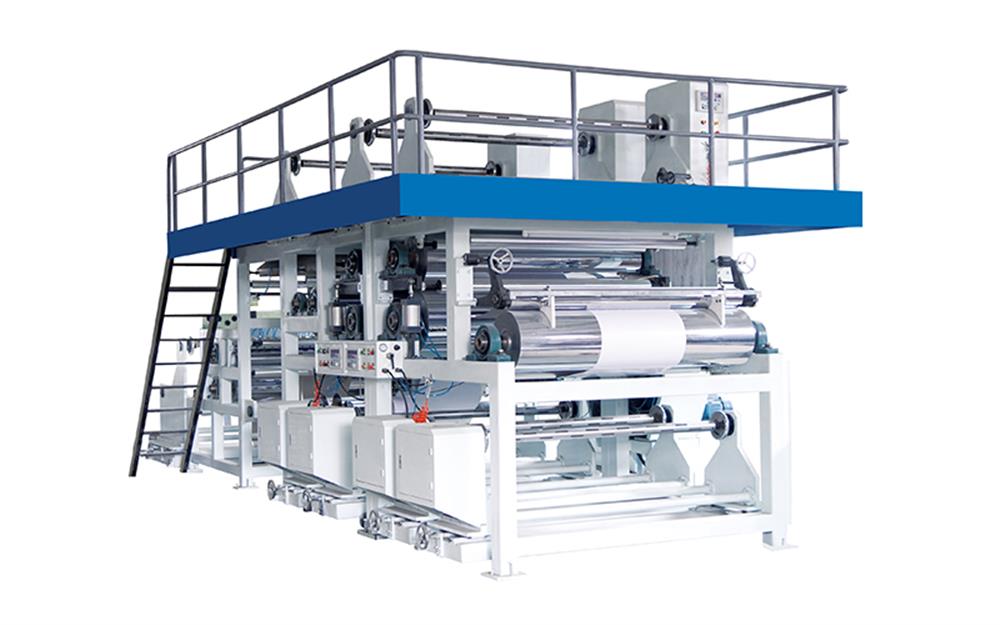

TB600-2500 thermo laminating machine
|
|
Coating method
|
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot die coating /micro gravure coating （Can be customized）
|
|
Coating width
|
600-2500MM （Can be customized）
|
|
Unwinding diameter
|
600-1500MM （Can be customized）
|
|
Winding diameter
|
600-1500MM （Can be customized）
|
|
Coating thickness
|
2-300g/square meter
|
|
Coating speed
|
10-300m / min (depending on material)
|
|
Heating method
|
Electric heating, oil heating and natural gas heating
|
Main technical parameters of hot press compound machine:
1. model: rf-1500 type
2. working width of Suburb: 1500mm
3. width and diameter of guide wheel: Ф 80mm × 1550mm
4. working line speed: 1-50m/min, meter meter speed controller
5. (low pressure PE) maximum diameter of substrate winding: single station φ 600mm (two groups)
6. maximum diameter of substrate winding: single station φ 1200mm (two groups)
7. heating method of hot roller: heat transfer oil (the heat conduction oil furnace shall be responsible by the demander)
8. total power of the whole machine: about 13kw, three-phase 415V 50Hz, 50 A.C
9. machine dimension: length × wide × Height (9.3m × 3.04m × 3.2m) container is about 1 40 feet
10. machine weight: about 8 tons
11. take and release the air expansion shaft of unwinding with safety lock
12. the machine color should be blue and milky white
13. production shall be carried out according to the drawing of the machine
14. emergency stop switch button shall be provided in front and rear of the machine
15. the motor speed of the whole machine shall be synchronized
16. 1 main cabinet box
