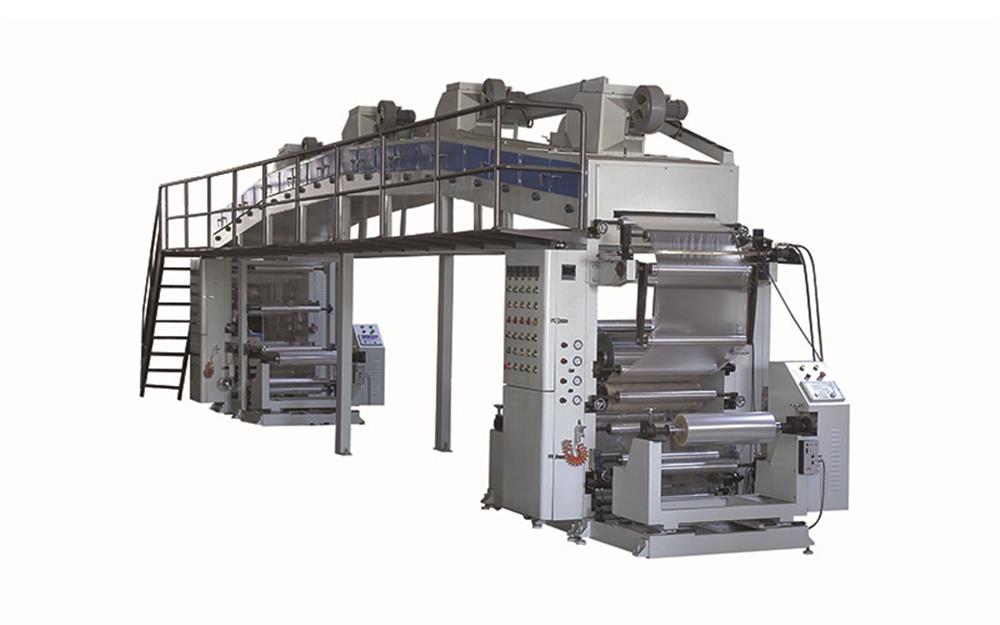

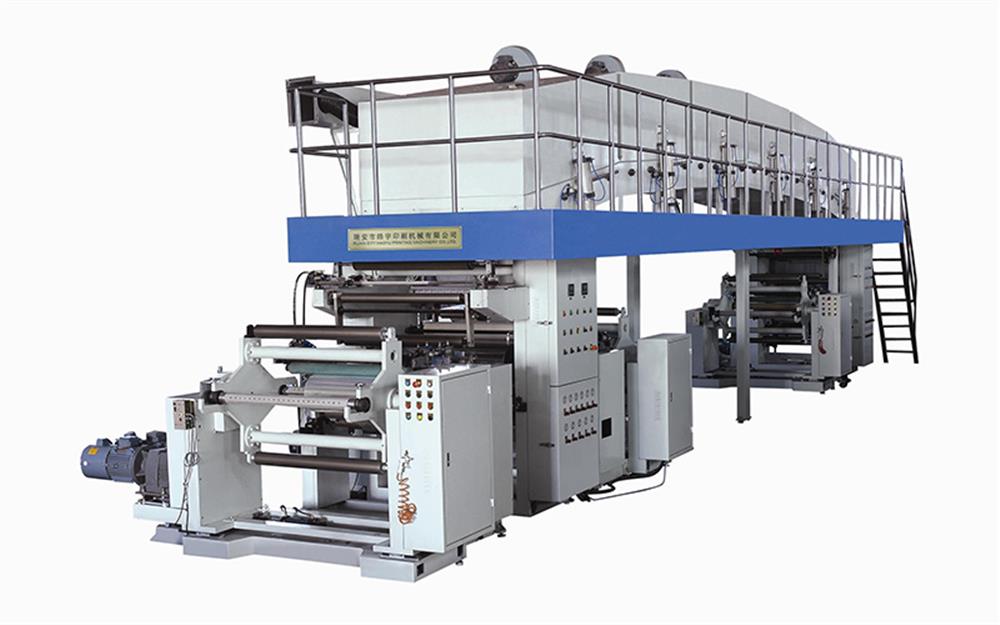

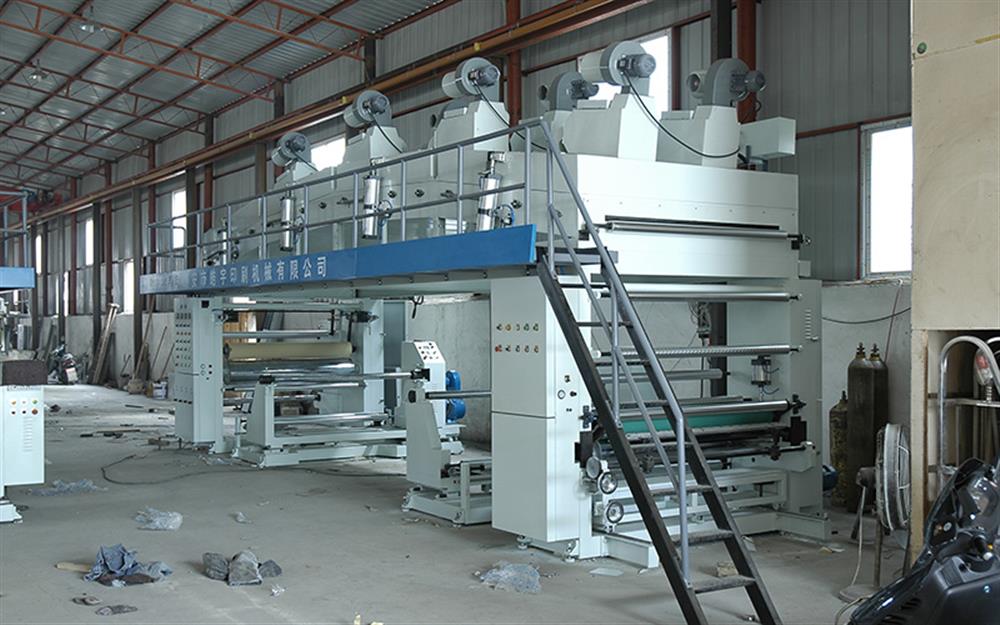

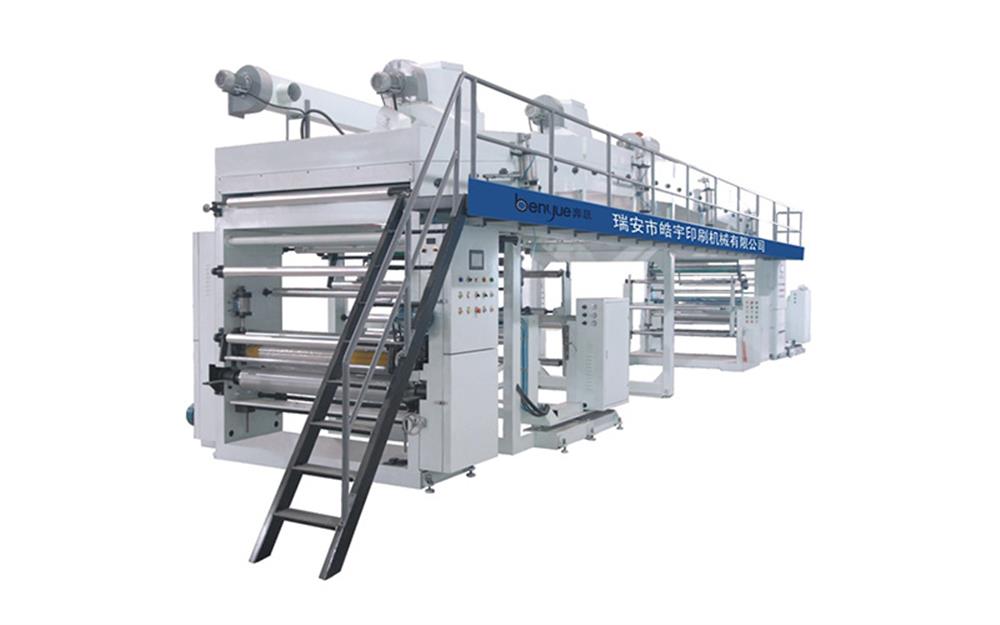

Type
|
GF-A1000
|
|
Work effective width
|
1000mm
|
|
Machine max line speed
|
200m/min
|
|
Laminating max. line speed
|
180m/min
|
|
Guide wheel width, diameter
|
φ100mm×1050mm
|
|
Rewinding and unwinding type
|
Double station, auto splicing system
|
|
Unwinding diameter
|
φ800mm
|
|
Rewinding diameter
|
φ850mm
|
|
Heating method
|
electric heating
|
|
Oven lenght
|
12m
|
|
Electrical power
|
126KW
|
|
Overall machine motor power
|
63KW
|
|
Dimension (L*W*H)
|
14500×2800×4800mm
|
|
machine weight
|
20000kg
|
According to the different requirements of the customers special the customized machine
1. The whole machine adopts four motor frequency conversion control to improve the tension reliability of the whole machine
2. Four closed-loop constant tension control of unwinding, gluing and coating, compound traction and winding
3. High precision anilox roll coating system, pneumatic scraper, uniform roll and glue circulation device. The coating amount depends on the mesh line of the anilox roll. The anilox roll with different mesh line can be changed for different coating amount
4. The heating methods of the oven are: electric heating, four section air top constant temperature oven, stratified inlet and outlet air, negative pressure design, strong wind force, complete drying and secondary return air, which not only saves energy, but also reduces the content of residual solvent
4. The guide roller in the oven adopts active and passive type, and the transmission adopts synchronous pulley transmission type to reduce material tension and deformation
5. EPC deviation correction is adopted for the first unwinding; EPC oblique rectification is also adopted after the film is out of the oven
6. High precision back pressure three roll composite device. The composite roll adopts sandwich heat transfer oil circulation and intermediate electric heating tube heating to make the composite more uniform and older
8. Make the composite film smoother and scratched by cooling roller
9. The retracting and releasing shaft adopts the expander type inflatable shaft, which is convenient for loading and unloading The machine is specially customized according to different requirements of customers (the limited width range is 300-2000mm)
A. The forms of retracting and releasing racks are: manual lifting single station, hydraulic lifting single station and electric turnover double station
B. Electric zipper climbing double station, electric turning wheel double station for customers to choose
C. The working speed is directly proportional to the coating material, coating thickness, oven length and drying temperature
