Model
|

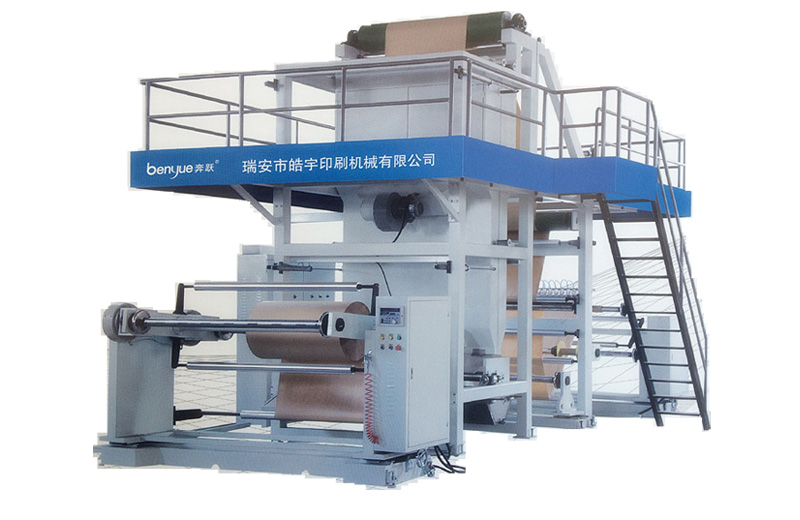

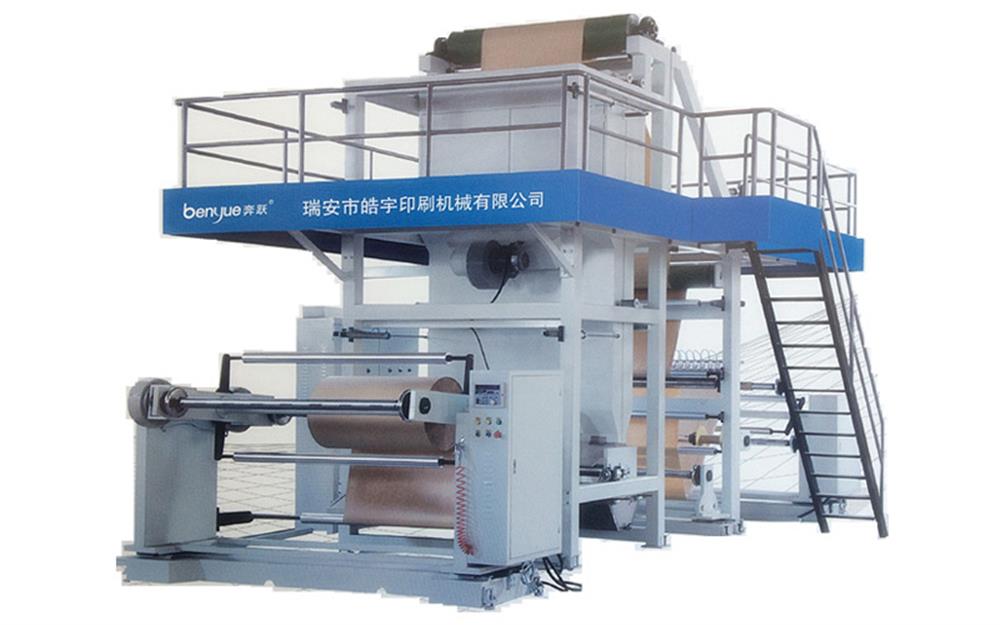

TB600-2500 double side dipping coating machine
|
|
Coating method
|
comma blade coating / gravure roller coating/ mayer bar coating /air knife coating / five roller coating / blade coating / slot die coating /micro gravure coating （Can be customized）
|
|
Coating width
|
600-2500MM （Can be customized）
|
|
Unwinding diameter
|
600-1500MM （Can be customized）
|
|
Winding diameter
|
600-1500MM （Can be customized）
|
|
Coating thickness
|
2-300g/square meter
|
|
Coating speed
|
10-300m / min (depending on material)
|
|
Heating method
|
Electric heating, oil heating and natural gas heating
|

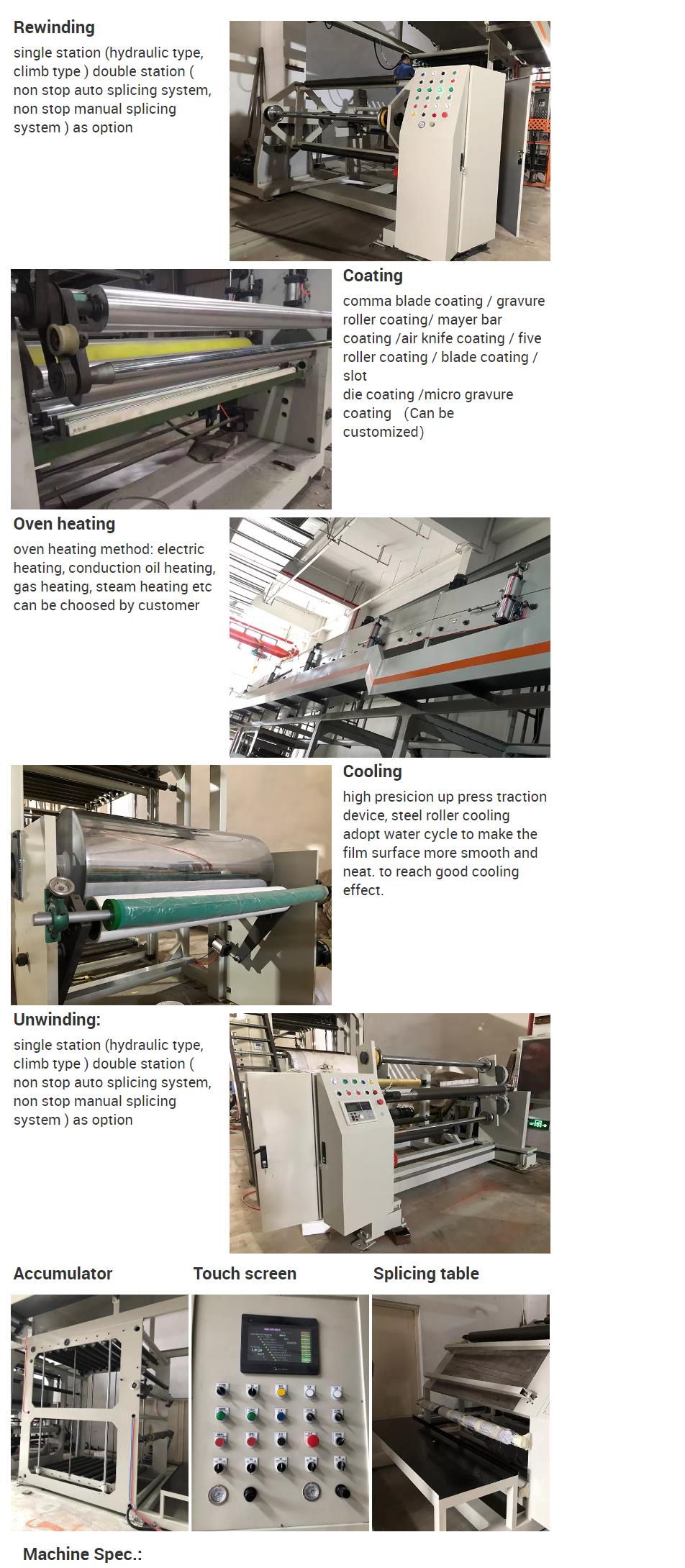

1. The whole machine is controlled by 4 frequency conversion motors.
2. The discharge rack is in the form of single station and adopts magnetic powder automatic tension control.
3. Double sided anilox coating method: the coating scraper shaft adopts heavy-duty double shaft mechanical independent swimming. The adjustment mode of the scraper is manual with pneumatic, and the angle can be adjusted arbitrarily. The coating amount depends on the mesh line of the anilox roller. The anilox roller with different mesh line can be changed for different coating amount.
4. Double layer oven: the upper layer is 9m, and the temperature is controlled independently in three sections;
5.The lower 1m is an independent temperature control section. The heating adopts electric heating, hot air entry drying system and adjustable internal circulation suction and exhaust device. The inlet and exhaust wind is strong and the drying is complete.
6. The guide wheel in the oven is actively synchronized with the main engine, and the transmission is synchronous belt wheel transmission type to reduce material tension and deformation. The side door oven and film threading operation platform make it easy for operators to work.
7. The intermediate tension between coating roller and traction steel roller is synchronously controlled by floating swing arm
8. Automatic meter and speed control device
9. EPC edging machine is used for deviation correction to ensure the orderly winding of materials.
10. The retracting and releasing shaft adopts key type inflatable shaft. In order to facilitate loading and unloading operation, the inflatable shaft adopts safety lock.
11. The cooling device of the traction roller and the cooling device of the cooling roller are adopted to achieve higher precision, so that the cooling effect of the cooling roller is higher.
12. The form of receiving rack is single station, and the winding is controlled by frequency conversion motor and vector frequency converter.
