type
|

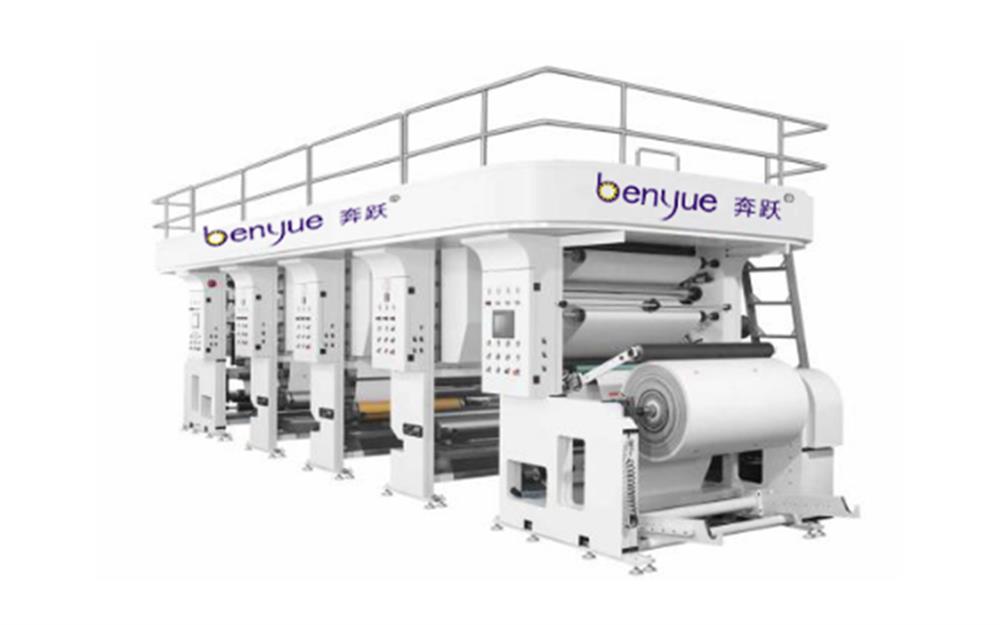

flexographic printing machine
|
|
Printing width
|
600-1600mm （Can be customized）
|
|
Roll width
|
1320mm （Can be customized）
|
|
Color units
|
6color 9units（Can be customized）
|
|
Roll diameter
|
600mm （Can be customized）
|
|
Paper core inner dia.
|
φ76mm
|
|
Printing plate dia.
|
φ110-300mm
|
|
registration precision
|
±0.15mm
|
|
Printing speed
|
50-180m/min
|
|
Machine speed
|
200m/min
|
|
Total power
|
135kw
|
|
overall machine weight
|
15000kg
|
|
dimension
|
13500*2650*2600mm
|
1. The whole machine is arranged and combined, controlled by PLC, and parameter setting and tension display are carried out by man-machine interface
2. The four units of unwinding, feeding, discharging and winding all adopt closed-loop tension control
3. The computer color registration system (longitudinal) of each unit is controlled by an independent microcomputer processor
4. The embossing roller adopts the swing arm type to act in coordination with the guide roller, and the double cylinder is pressed down
5. The scraper mechanism adopts Japanese Fuji model, with three-dimensional adjustment, pneumatic pressurization and arbitrary adjustment of pressure
6. Rewind and unwind double station turnover mechanism, inflatable loading and unloading shaft, manual refueling without shutdown
7. Closed oven, energy saving and quick drying, automatic constant temperature control system, internal circulation drying oven, waste gas emission, secondary return air hot gas device
8. The outlet of the drying oven is equipped with a cold air box to dissipate the heat of the substrate in time, reduce the stretching of the substrate and improve the printing speed
9. Shaftless pneumatic cone top mounted version, saving time and convenience for version change
10. High precision gear transmission box adopts patented technology
11. Automatic computer color registration device, optional static detection screen
