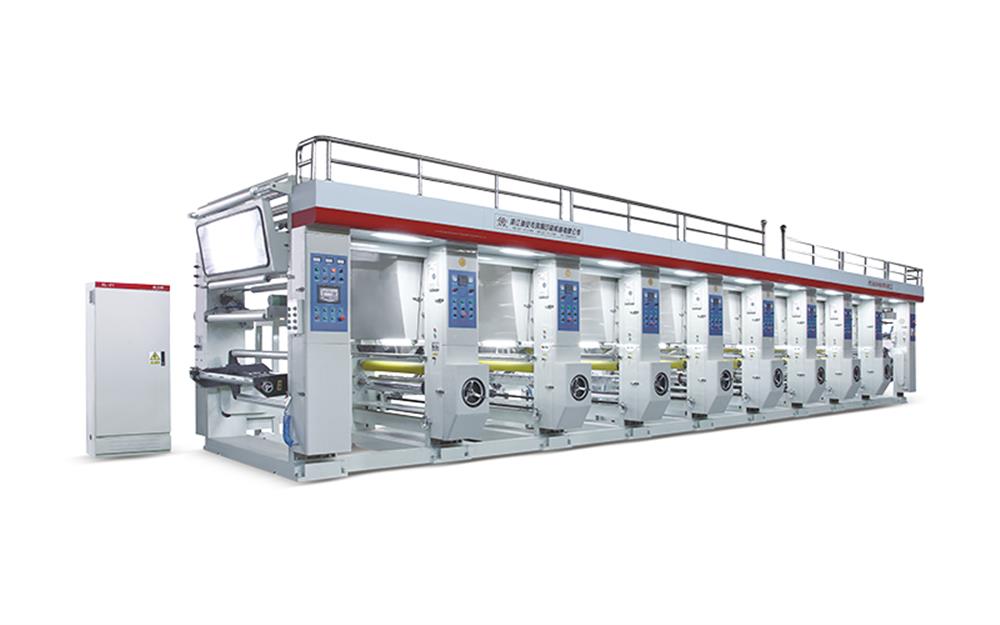

6color 8units computerized middle grade rotogravure printing machine

6color 8units computerized middle grade rotogravure printing machine

type
YS600-1600 rotogravure printing machine
Printing width
600-1600mm (Can be customized)
Roll width
1100mm (Can be customized)
Color units
6color 8units(Can be customized)
Roll diameter
600mm (Can be customized)
Paper core inner dia.
φ76mm
Printing plate dia.
φ100-270mm
registration precision
±0.15mm
Printing speed
50-90m/min
Machine speed
60m/min
Oven heating power
68kw
Total power
80 kw
overall machine weight
Approx 10000kg
dimension
1200*2050*2500mm

According to the different requirements of the customers special the customized machine

Machine Spec.:






The new computer automatic color registration system is adopted, and the color registration scanning head can track at high speed

1. The whole machine is arranged and combined, controlled by PLC, and parameter setting and tension display are carried out by man-machine interface

2. The four units of unwinding, feeding, discharging and winding all adopt closed-loop tension control

3. The computer color registration system (longitudinal) of each unit is controlled by an independent microcomputer processor

4. The embossing roller adopts the swing arm type to act in coordination with the guide roller, and the double cylinder is pressed down

5. The scraper mechanism adopts Japanese Fuji model, with three-dimensional adjustment, pneumatic pressurization and arbitrary adjustment of pressure

6. Rewind and unwind double station turnover mechanism, inflatable loading and unloading shaft, manual refueling without shutdown

7. Closed oven, energy saving and quick drying, automatic constant temperature control system, internal circulation drying oven, waste gas emission, secondary return air hot gas device

8. The outlet of the drying oven is equipped with a cold air box to dissipate the heat of the substrate in time, reduce the stretching of the substrate and improve the printing speed

9. Shaftless pneumatic cone top mounted version, saving time and convenience for version change

10. High precision gear transmission box adopts patented technology

11. Automatic computer color registration device, optional static detection screen

Request 1. The printing color group can be increased or decreased and the reverse printing mechanism can be added according to the requirements of customers 2. Shaft mounted / non shaft mounted version is optional by the customer, with limited width (600mm-2000mm).
