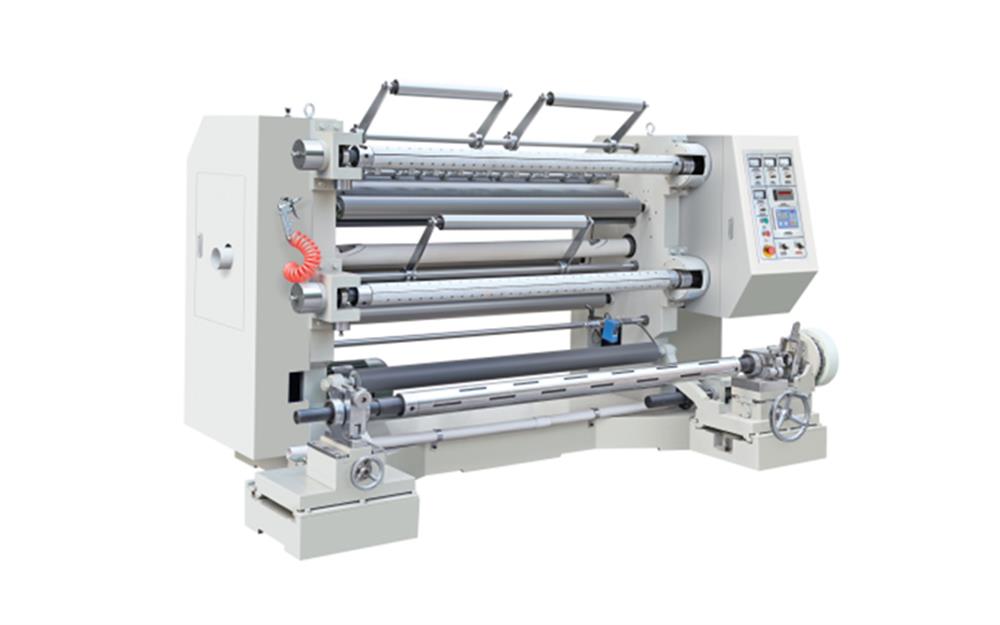

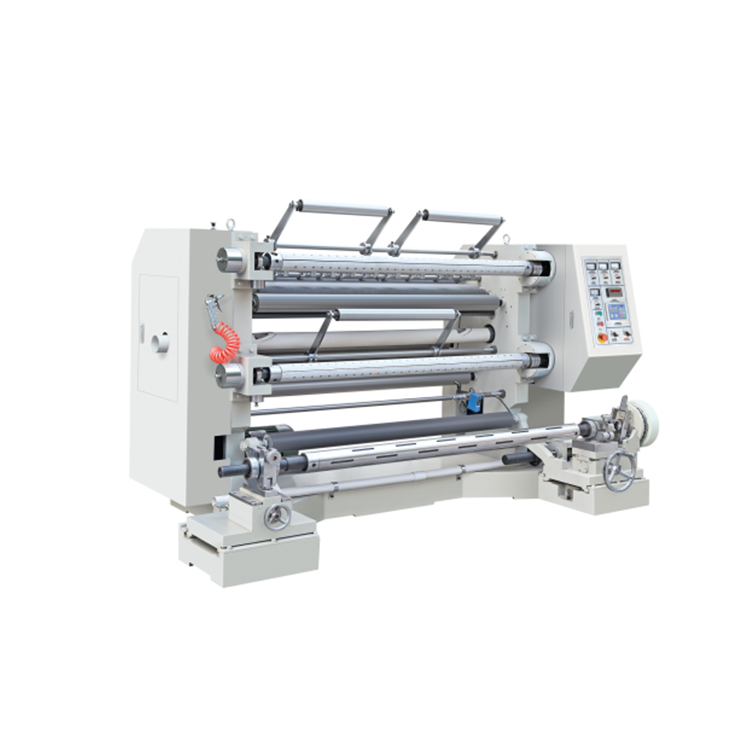

type
|
FQ-1600mm
|
|
width
|
1600mm
|
|
diameter
|
Φ800mm
|
|
paper core dia.
|
Φ76mm
|
|
slitting speed
|
150m/min
|
|
production width
|
30-1600mm
|
|
Slitting precision
|
0.5mm
|
|
machine power
|
8.5kw
|
|
Machine weight
|
3500kg
|
|
machine dimension
|
4500×2800×2000mm
|
The machine is suitable for BOPP, PET, CPP, PVC, aluminum foil, paper etc slitting
Parameter
1 unwinding adopt hydraulic lifting type
2 unwinding adopt magnetic powder auto-tension control
3 traction drive adopt vector frequency motor, to realize line speed control
4 rewinding drive adopt magnetic powder clutch, roll dia. Realize tension taper control
5 rewinding, unwinding adopt shaftless core (air shaft load the material ), by wire bar clamp and load the material, tightless by electricmotion
6 unwinding register adopt EPC air sensitive register execute, moving stroke 120mm
7 slitting adopt round blade slitting
8 system with length meter, roll diameter calculating function, to realize length setting slitting
