Type
|

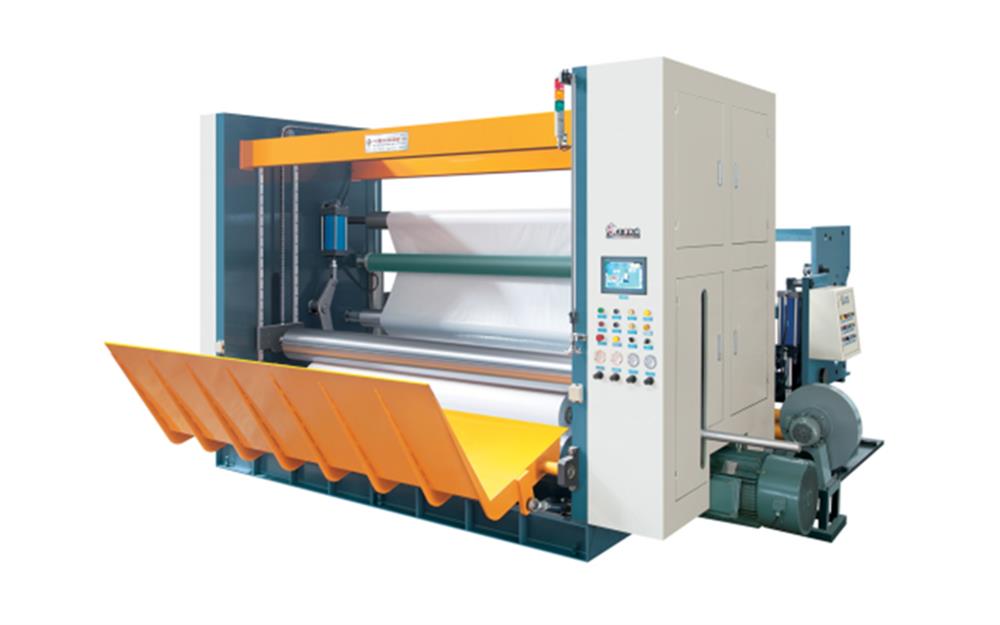

FQ600~1600 non woven fabric slitting machine
|
|
Working width
|
1300mm
|
|
Small processing width
|
30mm
|
|
Loading and unloading diameter
|
400mm
|
|
Diameter of feeding shaft
|
73mm
|
|
Motor power
|
1.1kw
|
|
Speed regulation mode
|
stepless speed regulation
|
|
Outline size
|
1900*1000*1200mm
|
|
Package size
|
2000 * 1100 * 1300mm
|
|
Gross weight
|
500kg
|
Machine Spec.:
1. The feeding shaft and rewinding shaft adopt tile type air expansion shaft, which is easy to fix and firm;
2. Variable frequency speed regulation is adopted, and the speed can be adjusted arbitrarily according to the coil diameter to prevent material breakage and material consumption;
3. The equipment is equipped with twelve cutters, which can divide the whole roll into 12 small rolls at one time;
4. Meter counter can be selected to calculate the cutting length
