Type
|

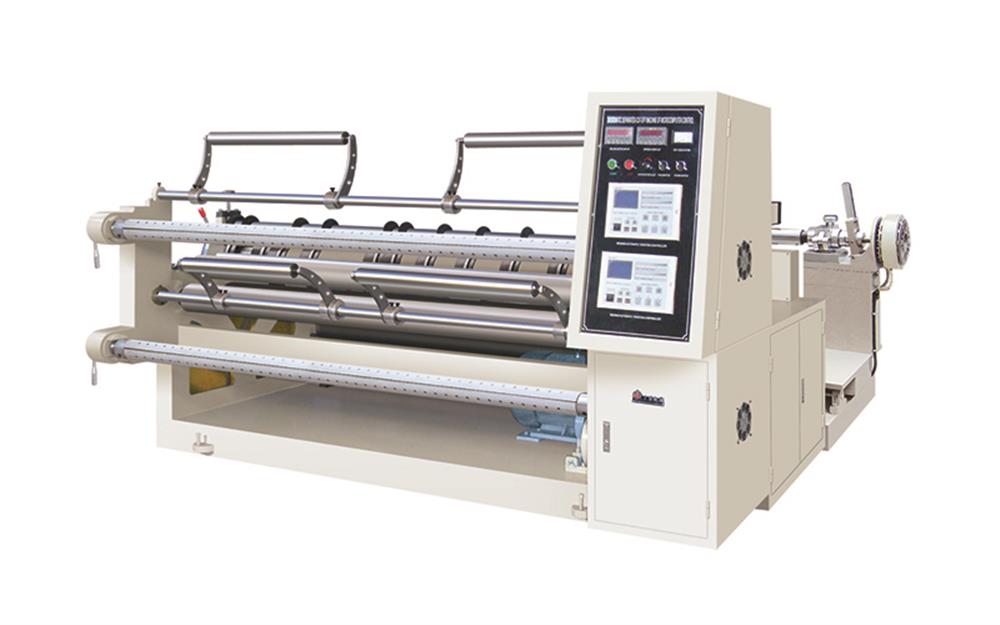

FQ600~1600 horizontal slitting machine
|
|
Raw material width
|
1600mm （Can be customized）
|
|
Raw material diameter
|
Φ 800mm （Can be customized）
|
|
Core diameter
|
Φ 76mm （Can be customized）
|
|
Slitting speed
|
150m/min （Can be customized）
|
|
Finished product width
|
30-1600mm （Can be customized）
|
|
Cutting accuracy
|
0.5mm （Can be customized）
|
Machine Spec.:
1 unwinding adopt hydraulic lifting type
2 unwinding adopt magnetic powder auto-tension control
3 traction drive adopt vector frequency motor, to realize line speed control
4 rewinding drive adopt magnetic powder clutch, roll dia. Realize tension taper control
5 rewinding, unwinding adopt shaftless core (air shaft load the material ), by wire bar clamp and load the material, tightless by electricmotion
6 unwinding register adopt EPC air sensitive register execute, moving stroke 120mm
7 slitting adopt round blade slitting
8 system with length meter, roll diameter calculating function, to realize length setting slitting
